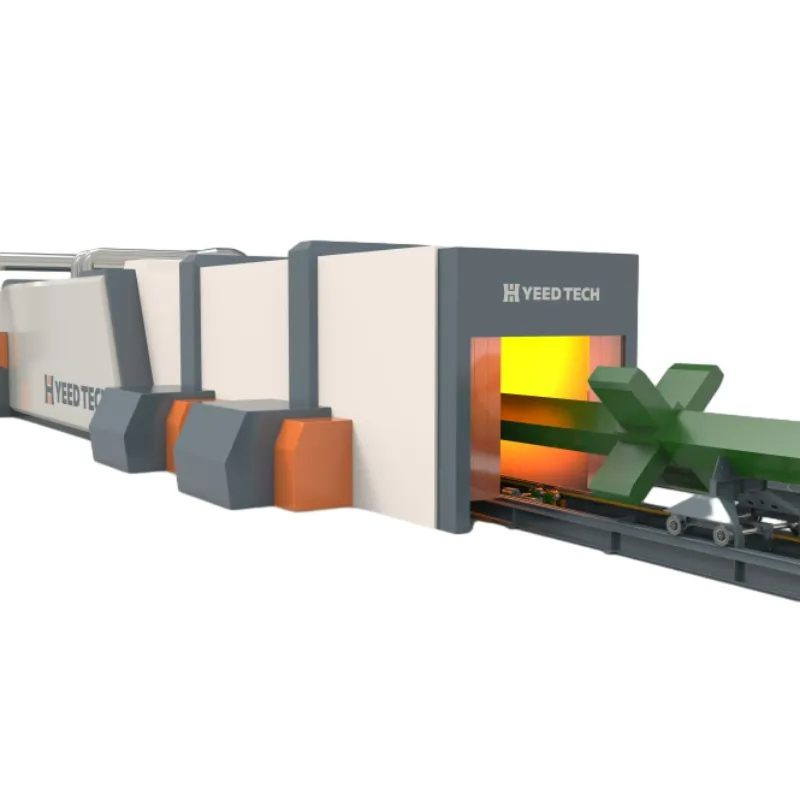

Spray Painting Line: Efficient Coating Solution for Steel Structure Protection

Spray painting line is a specialized automated system designed to streamline the coating process of steel structures, addressing the challenges of large sizes, complex shapes, and high durability requirements of structural steel. Unlike manual painting that struggles with uniformity and efficiency, a spray painting line integrates conveyor systems, precision spray guns, and drying zones to deliver consistent, high-adhesion coatings on steel components. It is widely used in the painting of structural steel for buildings, bridges, and industrial equipment, as it ensures every surface—including welds, corners, and curved areas—receives adequate coverage. By automating key steps like pre-treatment, primer application, and topcoat spraying, a spray painting line reduces labor costs and minimizes paint waste, making it a core tool for modern steel structure manufacturing.

Spray painting line plays a critical role in adapting to the unique characteristics of steel structure painting, such as the need for corrosion resistance and weather durability

Steel structures, especially those used outdoors, require coatings that can withstand harsh conditions like rain, UV radiation, and temperature fluctuations. A spray painting line addresses this by controlling parameters such as spray pressure (typically 0.3–0.5 MPa) and paint viscosity (50–80 seconds in a Ford cup), ensuring the coating forms a uniform film with a thickness of 60–120 μm—ideal for anti-corrosion protection. Additionally, the line can be equipped with pre-heating modules to dry steel surfaces before painting, preventing moisture from affecting coating adhesion. This level of control ensures that steel structure painting meets industry standards for durability, extending the service life of structural steel by 15–20 years.

Automatic painting line, a advanced variant of spray painting line, enhances the efficiency of steel structure coating through intelligent automation and process integration

An automatic painting line uses sensors and programmable logic controllers (PLCs) to adjust spray angles and conveyor speeds based on the dimensions of structural steel. For example, when coating long steel beams, the line automatically widens the spray width to cover the entire surface in one pass; for complex components like steel trusses, it slows down the conveyor to ensure no area is missed. This automation eliminates human error, such as uneven spraying caused by manual operation, and allows the line to operate continuously—processing up to 50 tons of structural steel per day. The automatic painting line also supports multi-layer coating, seamlessly switching between primer, intermediate coat, and topcoat without manual intervention.

Painting system for steel structure, often centered around a spray painting line, combines pre-treatment, painting, and curing processes to ensure comprehensive protection of structural steel

Before entering the spray painting line, structural steel undergoes pre-treatment steps like shot blasting to remove rust and oil, creating a clean surface for coating adhesion. The painting system for steel structure then uses the spray painting line to apply anti-corrosion primers (such as epoxy-based paints) and weather-resistant topcoats (like polyurethane paints), with each layer cured in temperature-controlled ovens within the line. This integrated system ensures that the painting of structural steel is not only efficient but also consistent—every component meets the same quality standards for coating thickness and adhesion. For large-scale projects like bridge construction, this system can handle multiple steel components simultaneously, aligning with tight project timelines.

Painting of structural steel, when executed via a spray painting line, offers significant advantages over traditional methods in terms of quality and sustainability

Manual painting of structural steel often results in uneven coating thickness, leading to weak spots in corrosion protection; a spray painting line, however, delivers a uniform film that adheres tightly to steel surfaces, reducing the risk of peeling or chipping. Additionally, the spray painting line is equipped with paint recovery systems that capture overspray, reducing paint waste by 25–30% compared to manual methods. This not only lowers material costs but also minimizes environmental impact, as less unused paint ends up in waste streams. For structural steel used in high-demand sectors like energy or transportation, this precise and sustainable painting process ensures long-term performance under heavy loads and harsh environments.

In summary, spray painting line serves as the backbone of efficient and high-quality steel structure coating, working in tandem with automatic painting line and painting system for steel structure to meet the rigorous demands of painting of structural steel. It addresses the unique challenges of steel structures—large sizes, complex shapes, and the need for durability—through automation, precision control, and integrated processes. By reducing labor dependency, minimizing waste, and ensuring consistent quality, spray painting line has become an indispensable tool in modern steel manufacturing. As the demand for durable, corrosion-resistant structural steel grows in construction and industrial sectors, the role of spray painting line will continue to expand, driving further innovations in automated coating technology for steel structures.

Spray Painting Line  FAQs

1. What are the typical applications of a spray painting line?

This spray painting line is ideally suited for coating large structural steel elements, complex fabricated assemblies, and components with intricate geometries commonly found in bridge construction, shipbuilding, and heavy machinery manufacturing.

2. How does a spray painting line handle complex component shapes?

The system integrates programmable robotic arms with multi-axis movement, ensuring consistent paint coverage on all surfaces, including recessed areas, sharp corners, and hard-to-reach geometries on large workpieces.

3. What finishing capabilities does a spray painting line provide?

This automated line delivers a uniform, high-quality finish with precise film thickness control, utilizing advanced electrostatic application technology to minimize overspray and achieve optimal transfer efficiency on industrial-scale components.

4. What safety features are integrated into a modern spray painting line?

The enclosed spray painting line incorporates comprehensive explosion-proof electrical systems, automated fire suppression, negative pressure ventilation, and VOC abatement systems to ensure a safe operating environment.

5. How does a spray painting line ensure process consistency?

Through fully automated pretreatment, precise climate-controlled drying ovens, and robotic application with real-time monitoring, the spray painting line maintains consistent coating quality, adhesion, and cure rates across all production batches.
